Contacts/Calendar server with Radicale

Radicale is a CalDAV and CardDAV server.

Server setup

Create docker-compose.yml

services:
    radicale:
        image: ghcr.io/kozea/radicale:3.7.3
        networks: ["server"]
        restart: "unless-stopped"
        ports:
            - 5232:5232
        environment:
            RADICALE_CONFIG: "/etc/radicale/radicale.ini"
        volumes:
            - "./data/persistence:/var/lib/radicale"
            - "./data/config:/etc/radicale"
        labels:
            - "traefik.enable=true"
            - "traefik.http.routers.radicale.rule=Host(`radicale.${DOMAIN}`)"

networks:
    server:
        external: true

In the docker-compose file we mounted two volumes data/persistence and data/config. Persistence is used to store calendar/contacts data for each user. We’ll use the config folder to configure radicale:

Create a new file data/config/radicale.ini

[server]
# Bind all addresses
hosts = 0.0.0.0:5232

[auth]
type = htpasswd
htpasswd_filename = /etc/radicale/users
htpasswd_encryption = bcrypt
[storage]
filesystem_folder = /var/lib/radicale/collections
[web]
type = internal
[rights]
type = owner_only
[logging]
level = warning
[sharing]
type = csv
collection_by_map = true
permit_create_map = true

Setup users
- Create a new file data/config/users and add each user like this, separated by linebreak:
```
<USERNAME>:<BCRYPT_PASSOWRD_HASH>
```
- To create a password hash with bcrypt use the following python script
```
python3 -c 'import bcrypt; print(bcrypt.hashpw(b"<PLAIN_PASSWORD>", bcrypt.gensalt(rounds=15)).decode("ascii"))'
```

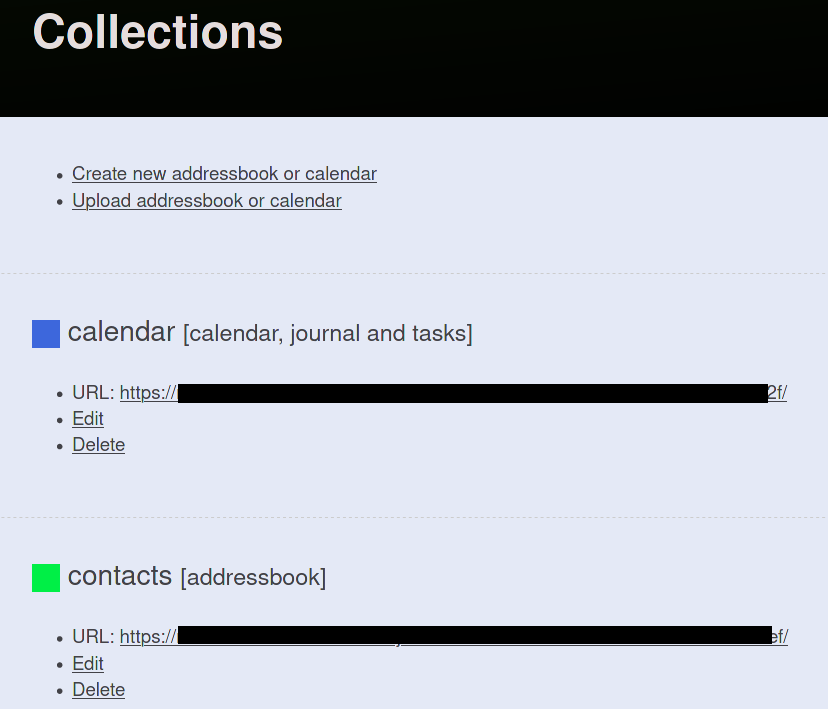

Now you should be able to access the webservice of radicale via browser (radicale.<YOUR_DOMAIN>) and login with the credentials from the users file. After creating a calendar and an address book you should see them listed with their urls, which are needed for client setup.

Client setup

Thunderbird

Install the extensions TbSync and Provider für CalDAV & CardDAV

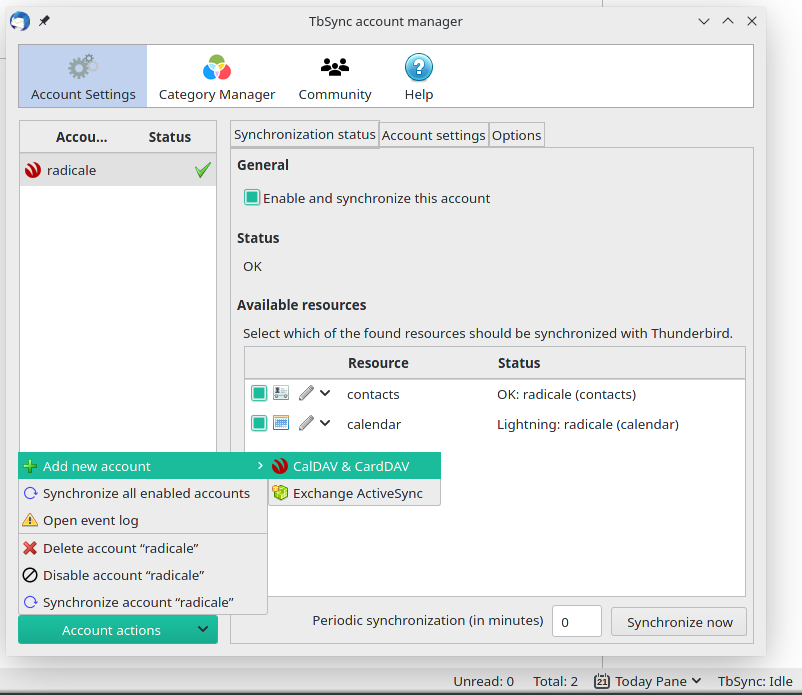

Click TbSync in the bottom right corner of thunderbird status panel and create a new account
TbSync account setup
Select manual configuration
Fill in your credentials and the calendar/contacts urls from the radicale collections web ui.

After synchronizing you should now see your calender in lightning and your contacts in the address book.

Android

Install DAVx⁵ (Provider for cardDav/calDav)
Add account and select “Login with URL and user name”
Enter url for calendar collection and your credentials
Repeat for contacts

You should now be able to select your calendar in the calendar app (e.g. Etar) and your contacts in the contacts app (e.g. Simple contacts).

With the app Birthday Adapter you can view your contacts birthdays in the calendar.

Sources

radicale
