Wireguard VPN

This setup uses subnet 10.14.0.0/24 and port 1234.

Setup openwrt

Install wireguard, wireguard-tools and luci integration

opkg install luci-proto-wireguard luci-app-wireguard wireguard kmod-wireguard wireguard-tools

Generate keys

umask 077 && wg genkey > privkey
cat privkey | wg pubkey > pubkey

Create wireguard network interface wg0 in /etc/config/network

config interface 'wg0'
    option proto 'wireguard'
    # the content of previously generated privkey (openwrt)
    option private_key '<OPENWRT PRIVATE KEY>'
    option listen_port '1234'
    list addresses '10.14.0.1/24'

Configure /etc/config/firewall

# create new firewall zone for vpn
config zone
    option name 'vpn'
    option input 'ACCEPT'
    option output 'ACCEPT'
    option forward 'ACCEPT'
    option network 'wg0'

# allow forwarding from vpn to wan (allow vpn clients to use internet)
config forwarding
    option src 'vpn'
    option dest 'wan'

# create port forwarding to openwrt device
config redirect
    option dest_port '1234'
    option src 'wan'
    option name 'Wireguard'
    option src_dport '1234'
    option target 'DNAT'
    option dest_ip '192.168.1.1'
    list proto 'udp'
    option dest 'vpn'

# Optional: Restrict internet access to specified vpn clients. Order matters!
# allow specified vpn clients access to internet
config rule
    option name 'Accept VPN Internet'
    option dest 'wan'
    option target 'ACCEPT'
    option src 'vpn'
    list src_ip '10.14.0.4/32'
    list proto 'all'
# deny all other vpn clients access to internet
config rule
        option dest 'wan'
        option target 'REJECT'
        option name 'Reject VPN Internet'
        option src 'vpn'
        list proto 'all'

Setup clients

Linux

Install wireguard and wireguard tools on arch. See official docu for other distros.
```
sudo pacman -S wireguard-tools
```

Generate keys

umask 077 && wg genkey > privkey
cat privkey | wg pubkey > pubkey

Create wireguard config wgHome.conf

[Interface]
# Client IP
Address = 10.14.0.2/24
DNS = 10.14.0.1
# the content of previously generated privkey (client)
PrivateKey = <CLIENT PRIVATE KEY>

[Peer]
# the content of the previously generated pubkey (openwrt)
PublicKey = <OPENWRT PUBLIC KEY>
# If you want to route all traffic through wireguard tunnel use 0.0.0.0/0 instead
AllowedIPs = 10.14.0.0/24
# e.g. somedomain.dyndns.org
Endpoint = <PUBLIC IP>:1234
PersistentKeepalive = 25

Create interface wg0
```
ip link add dev wg0 type wireguard
```
Apply configuration to interface wg0
```
wg setconf wg0 wgHome.conf
```

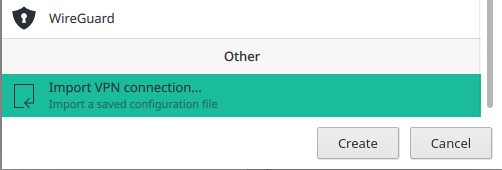

Step 4 & 5 can also be done via network manager:

Windows

Download and install wireguard from official site.
Add empty tunnel

Edit tunnel

[Interface]
# Automatically generated private key (client)
PrivateKey = <CLIENT PRIVATE KEY>
# Client IP
Address = 10.14.0.2/24
DNS = 10.14.0.1

[Peer]
# the content of the previously generated pubkey (openwrt)
PublicKey = <OPENWRT PUBLIC KEY>
# If you want to route all traffic through wireguard tunnel use 0.0.0.0/0 instead
AllowedIPs = 10.14.0.0/24
# e.g. somedomain.dyndns.org
Endpoint = <PUBLIC IP>:1234
PersistentKeepalive = 25

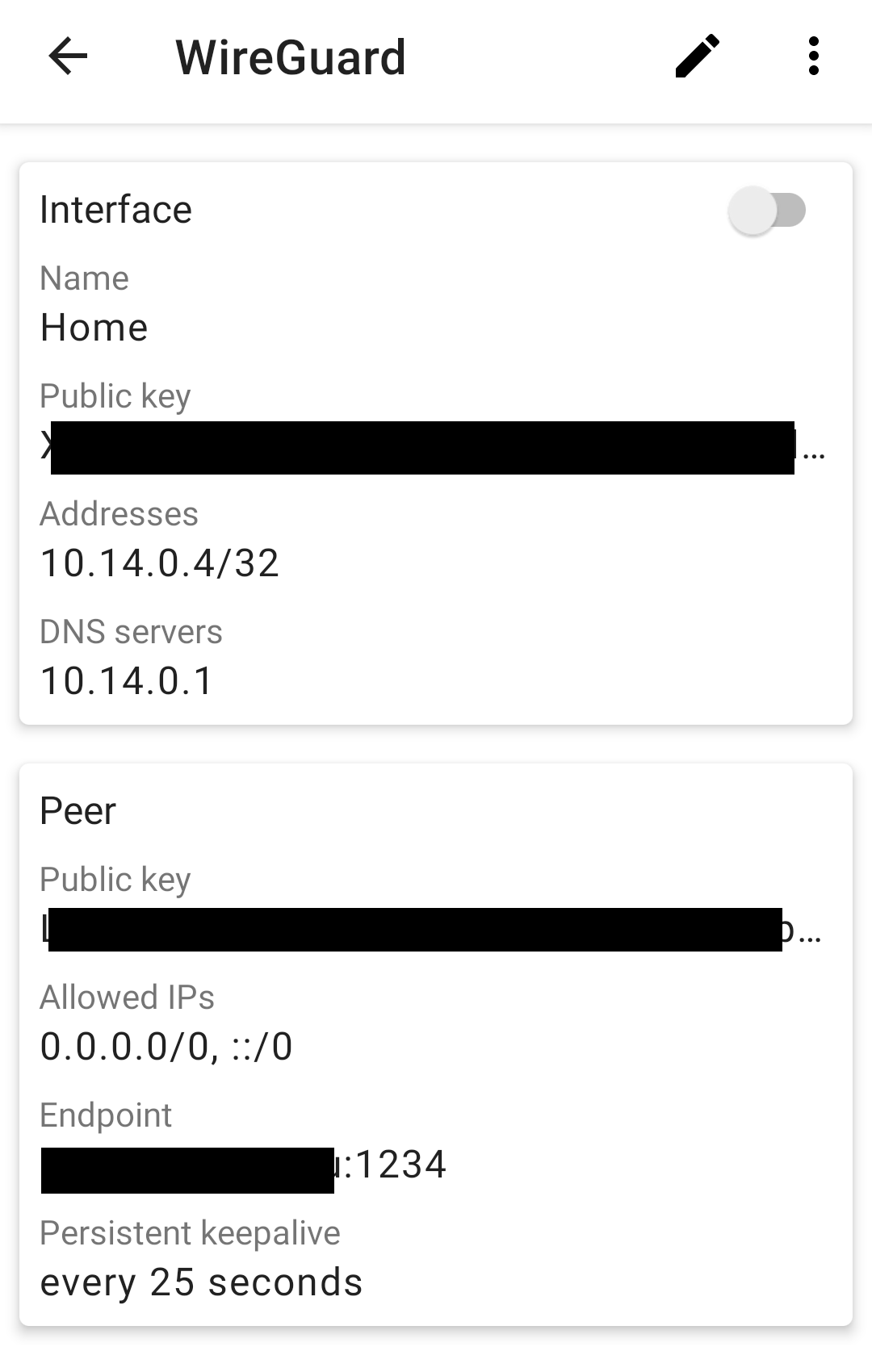

Android

Install wireguard f-droid
Create new tunnel
- Generate private/public keys
- Address: “10.14.0.2/24”
- DNS-Server: “10.14.0.1”
- Add peer
  - Public key: “OPENWRT PUBLIC KEY”
  - Persistent keepalive: “25”
  - Endpoint: “PUBLIC_IP:1234”
  - Allowed ips: “0.0.0.0/0, ::/0” //route everything through wireguard tunnel

Setup client in openwrt

Configure /etc/config/network

config wireguard_wg0
    option public_key '<CLIENT PUBLIC KEY>'
    option description '<CLIENT DESCRIPTION>'
    option persistent_keepalive '25'
    option route_allowed_ips '1'
    # client ip (here 10.14.0.2)
    list allowed_ips '<CLIENT IP>/32'

Restart interface wg0

Sources

reddit - REDGuineaPig
