WAN configuration for suisse ISP sunrise

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fda4:3e80:2c40::/48'

config atm-bridge 'atm'
        option vpi '1'
        option vci '32'
        option encaps 'llc'
        option payload 'bridged'
        option nameprefix 'dsl'

config dsl 'dsl'
        option annex 'b'
        option tone 'av'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'

config device
        option name 'lan1'
        option macaddr '08:96:D7:34:BA:CB'

config device
        option name 'lan2'
        option macaddr '08:96:D7:34:BA:CB'

config device
        option name 'lan3'
        option macaddr '08:96:D7:34:BA:CB'

config device
        option name 'lan4'
        option macaddr '08:96:D7:34:BA:CB'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config device
        option name 'dsl0'
        option macaddr '08:96:D7:34:BA:CE'

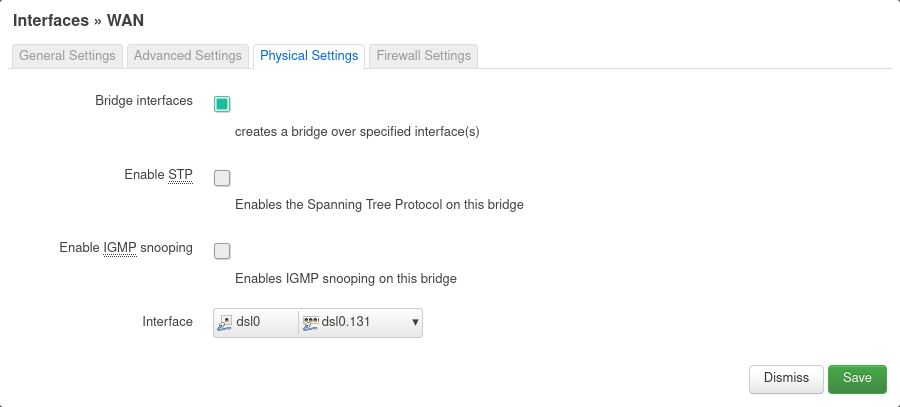

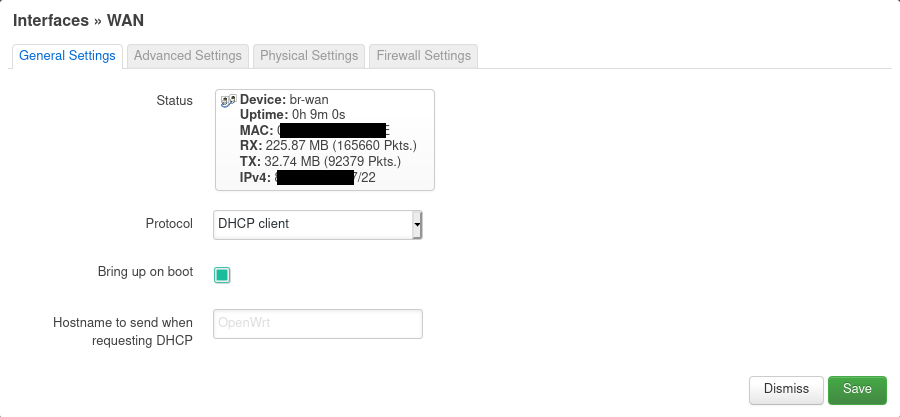

config interface 'wan'
        option pppd_options 'debug'
        option proto 'dhcp'
        option device 'br-wan'

config device
        option name 'br-wan'
        option type 'bridge'
        list ports 'dsl0'
        list ports 'dsl0.131'
